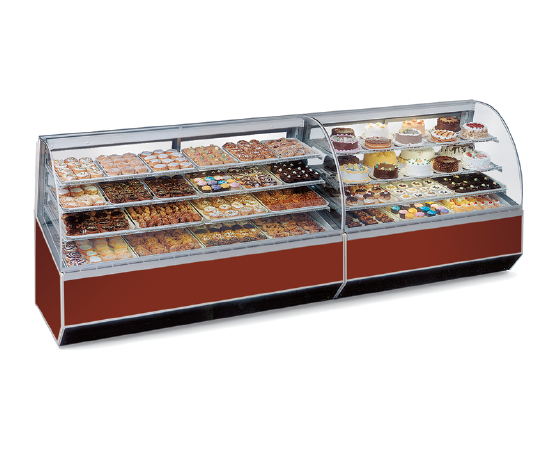

Series '90

Refrigerated Bakery

The ultimate merchandiser with advanced styling for maximum visual appeal. Cases are available in lengths of 48", 59" and 77". Designed for continuous case lineups.

Standard Features

  • Lift up cylinder assisted tempered curved front glass.
  • All welded base construction.
  • Choice of six standard laminates on base. Other finishes optional.
  • Four point leveling system.
  • Neutral beige acrylic PVC trim. Other trim options available.
  • Case height is only 48" high.
  • Double bend tempered front glass reduces glare from outside lighting.
  • Adjustable white cantilevered wire shelves.
  • Glass ends and rear doors. Rear doors are sloped for product access.
  • Removable sliding rear doors, shelf lights, shelf supports and shelves.
  • Fluorescent top light and mezzanine shelf lights.  Lights are shielded and independently wired.
  • Easily accessible control panel.
  • White display deck.
  • Thermometer.
  • UL Safety & UL Sanitation listed.
  • Average case temperature of 38° F to 40° F is maintained without condensation on the front glass.
  • Oversized coil and low velocity fan system maintains high humidity and product freshness.
  • Condensate evaporator provided for a totally self-contained system. Remote refrigeration available.
  • Pull out condensing unit for quick and easy service.
  • R134A refrigeration system.

Product Options

  • Special Base Finish
  • Base Trim Specify White, Black, or Stainless
  • End Glass Trim Specify White or Black
  • Black or Stainless Steel Interior
  • Glass, Black, or Chrome Shelves in Lieu of White
  • Casters or Legs
  • Cord and Plug (Six Foot)
  • Front Package Shelf With or Without Light Below
  • Reflective End Glass
  • Mirrored Interior Ends With Laminated Exterior
  • Reflective Rear Doors
  • Chocolate Case Modification
  • Rear Wrapping Board
  • Front Glass and Rear Door Locks
  • Top Service Shelf (Stainless Steel or Glass)
  • Condensate Pump


      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
Model Description Dimensions
SNR-48SC Refrigerated Bakery 48.25" X 37.75" X 48.50"
SNR-59SC Refrigerated Bakery 59.25" X 37.75" X 48.50"
SNR-77SC Refrigerated Bakery 77.25" X 37.75" X 48.50"
