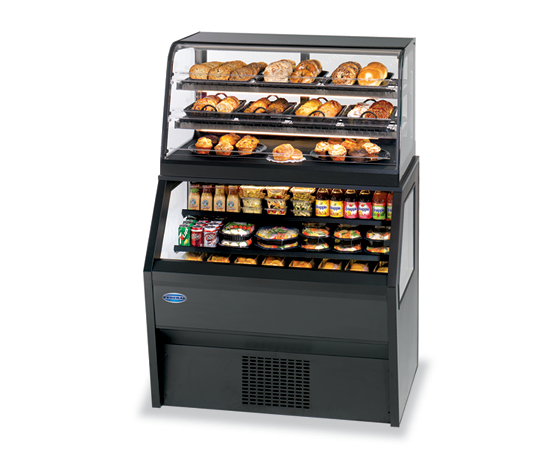

Specialty Display
CD3628SS_RSS3SC

Non-Refrigerated over Refrigerated Self-Serve

Display more product and serve more customers with presentation and value in mind.

Standard Features

Refrigerated Self-Serve Bottom Display

  • Black laminated exterior. Other finishes optional.
  • Black trim. Silver optional.
  • Black interior, glass ends.
  • Horizontal LED top and front light.
  • Two tiers black metal shelves.
  • Electronic temperature control maintains 38º to 40º case temperature. Note: Case temperature will vary if the air curtain is disrupted.
  • Cord and plug. (Not available on RSS6SC.)
  • Condensate evaporator (separate circuit required on model RSS6SC.)
  • R513a Refrigerant

Service or Self-Serve Non-Refrigerated Top Display

  • Two tiers black wire shelves.
  • Sliding rear doors.
  • Black trim.
  • Self-Serve has three hinged lift-up front doors.

Lighting

  • LED top and shelf lights.

Agency Approvals

  • UL Safety & UL Sanitation Listed to NSF Type II conditions.
  • DOE 2017 Compliant

Product Options

For Top Display

  • Glass Shelves
  • Reflective Ends
  • Reflective Rear Doors

For Self-Serve Refrigerated Base

  • Energy Saving Night Curtain
  • Silver Trim
  • Special Base Finish
  • Mirrored Interior Ends
  • Security Night Cover
  • Stainless Steel Steps in Lieu of Metal Shelves
  • Reflective End Glass


Models

      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
Model Description Dimensions
CD3628/RSS3SC Non-Refrigerated over Refrigerated Self-Serve 36.25" X 39.00" X 69.75"
CD3628/RSS4SC Non-Refrigerated over Refrigerated Self-Serve 48.00" X 39.00" X 69.75"
