High Volume

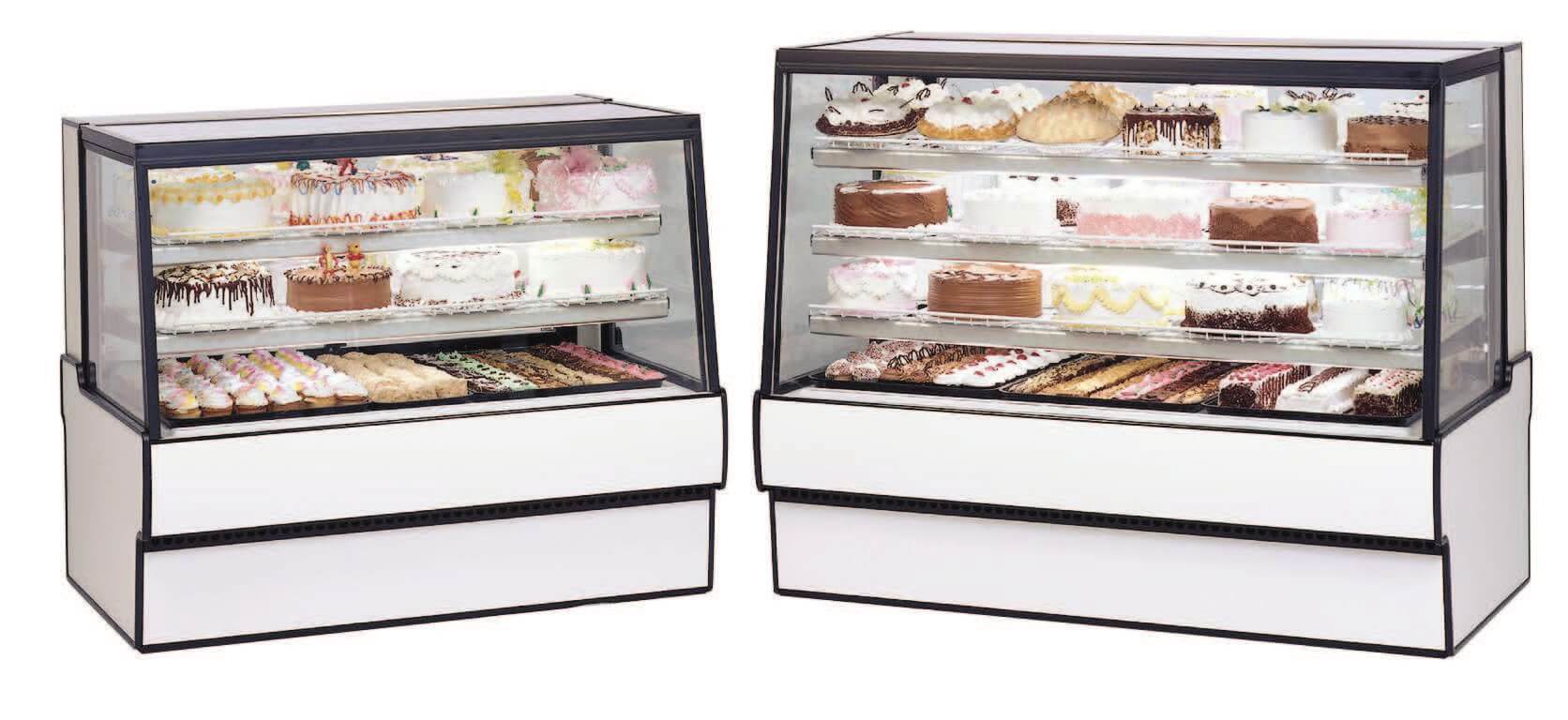

SGR3142 HIGH VOLUME REFRIGERATED BAKERY CASE

Refrigerated Bakery

Display more product and serve more customers with presentation and value in mind. Cases are available in lengths of 31", 36", 50", 59" and 77". Designed for continuous case lineups without middle end glass.

Standard Features

  • Tilt out tempered straight front glass for easy cleaning.
  • Steel base construction.
  • Choice of six standard laminates on base. Other finishes optional.
  • Four point leveling system.
  • Tempered glass top, ends and doors.
  • Removable sliding rear doors, shelf lights, shelf supports and shelves.
  • 31" model has a hinged right or left swinging rear door.
  • Black trim.
  • Adjustable white cantilevered wire shelves.
  • Shielded LED top and shelf lights.
  • Removable scratch resistant rustproof white display deck.
  • Rustproof insulated evaporator coil compartment.
  • Easily accessible controls.
  • Thermometer.
  • UL Safety & UL Sanitation listed.
  • Average case temperature of 38° F to 40° F is maintained.
  • Oversized coil and low velocity fan system maintains high humidity and product freshness.
  • Condensate evaporator provided for a totally self-contained system. Remote refrigeration available.
  • Condenser air filter on self-contained models.
  • Rear access to the refrigeration system.
  • R134A refrigeration system.

Product Options

  • Special Base Finish
  • Special Trim
  • Glass Shelves
  • Rear Wrapping Board
  • Casters/Cord & Plug Included (Self-Contained Models Only)
  • Remote Condensing Unit
  • Reflective Ends
  • White or Mirrored Interior Ends with Laminated Exterior
  • Reflective Rear Doors
  • Cord & Plug (NEMA 5-15P FOR 31, 36, 50, 59 Models, NEMA 5-20P FOR 77 Models.)
  • (Self-Contained Models Only)
  • Legs
  • Top Cutting Board, White
  • Package Shelf
  • LED Light Below Package Shelf
  • Black, Gold, or Chrome Wire Shelves
  • Front Glass and Rear Door Locks
  • Joining Kit for Continuous Line-ups

Models

      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
Model Description Dimensions
SGR3142 Refrigerated Bakery 31.13" X 35.31" X 42.00"
SGR3148 Refrigerated Bakery 31.13" X 35.31" X 48.00"
SGR3642 Refrigerated Bakery 36.13" X 35.31" X 42.00"
SGR3648 Refrigerated Bakery 36.13" X 35.31" X 48.00"
SGR5042 Refrigerated Bakery 50.13" X 35.31" X 42.00"
SGR5048 Refrigerated Bakery 50.13" X 35.31" X 48.00"
SGR5942 Refrigerated Bakery 59.13" X 35.31" X 42.00"
SGR5948 Refrigerated Bakery 59.13" X 35.31" X 48.00"
SGR7742 Refrigerated Bakery 77.13" X 35.31" X 42.00"
SGR7748 Refrigerated Bakery 77.13" X 35.31" X 48.00"
