High Volume

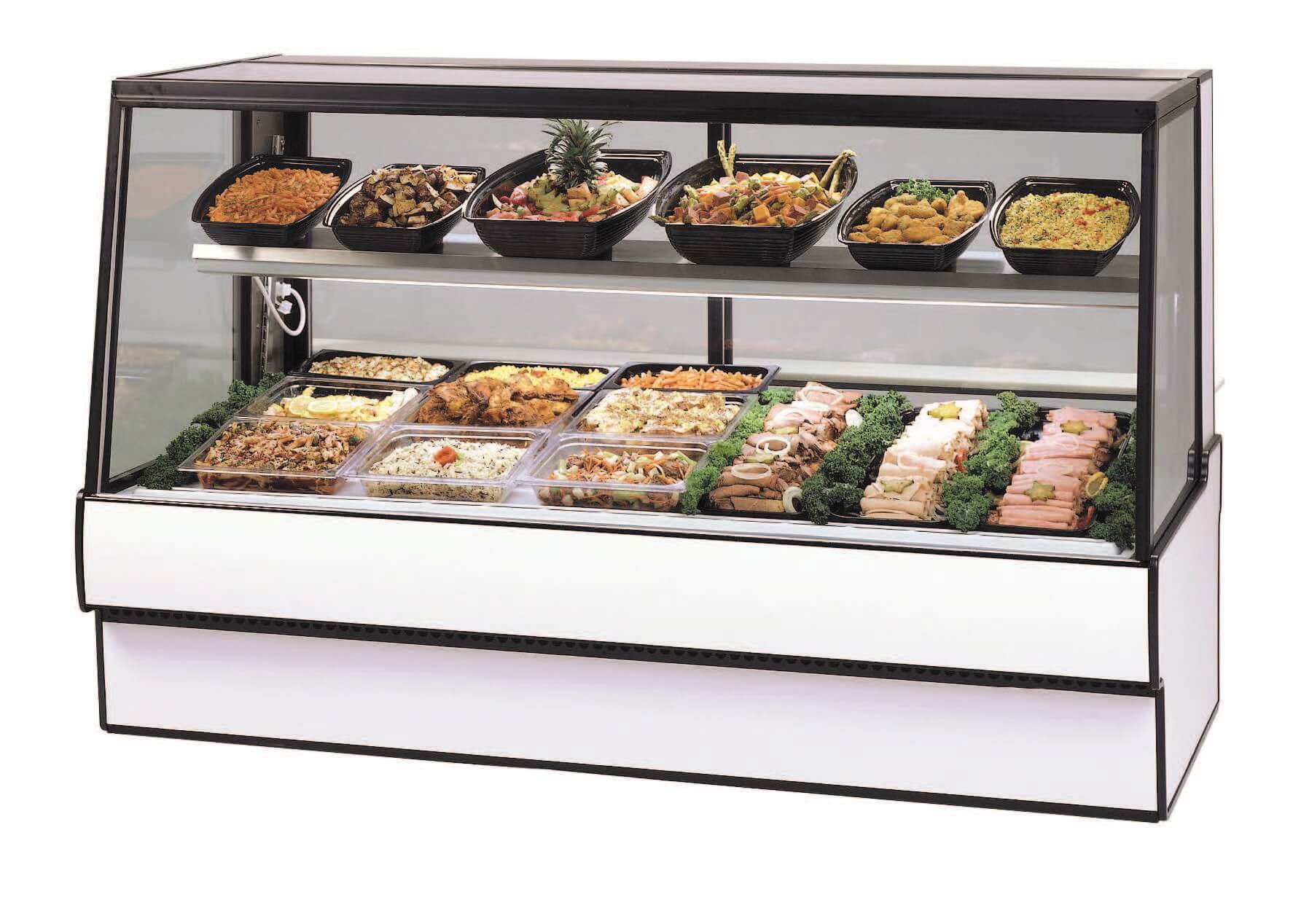

SGR3648CD HIGH VOLUME REFRIGERATED DELI CASE

Refrigerated Deli

Display more product and serve more customers with presentation and value in mind. Cases are available in lengths of 50", 59" and 77". Designed for continuous case lineups without middle end glass.

Standard Features

  • Tilt out tempered straight front glass for easy cleaning.
  • Steel base construction.
  • Choice of six standard laminates on base. Other finishes optional.
  • Four point leveling system.
  • Tempered glass top, ends and doors.
  • Removable sliding rear doors, shelf lights, shelf supports and shelves.
  • Removable rear wrapping board.
  • Black trim.
  • Adjustable full length stainless steel lighted mezzanine shelf.
  • Shielded LED top and shelf lights.
  • Removable scratch resistant rustproof white display deck.
  • Rustproof insulated evaporator coil compartment.
  • Easily accessible controls.
  • Thermometer.
  • UL Safety & UL Sanitation listed.
  • Average case temperature of 36° F to 38° F is maintained.
  • Oversized coil and low velocity fan system maintains high humidity and product freshness.
  • Condensate evaporator provided for a totally self-contained system. Remote refrigeration available.
  • Condenser air filter on self-contained models.
  • Rear access to the refrigeration system.
  • R134A refrigeration system.

Product Options

  • Special Base Finish
  • Additional Mezzanine Shelf
  • Remote Refrigeration
  • Reflective Ends
  • White or Mirrored Interior Ends With Laminated Exterior
  • Reflective Rear Doors
  • Casters/Cord & Plug Included (Self-Contained Models Only)
  • Cord & Plug (Self-Contained Models Only) NEMA 5-15P for 36", 50", 59" Models NEMA 5-20P for 77" Models
  • Legs
  • Top Cutting Board, White
  • Package Shelf
  • Light Below Package Shelf
  • Front Glass and Rear Door Locks
  • Joining Kit for Continuous Line-ups
  • Scale Platform
  • Step Riser or Pan Holder

Models

      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
SGR3148CD Refrigerated Deli 31.13" X 35.31" X 48.00"
SGR3642CD Refrigerated Deli 36.13" X 35.31" X 42.00"
SGR3648CD Refrigerated Deli 36.13" X 35.31" X 48.00"
SGR5042CD Refrigerated Deli 50.13" X 35.31" X 42.00"
SGR5048CD Refrigerated Deli 50.13" X 35.31" X 48.00"
SGR5942CD Refrigerated Deli 59.13" X 35.31" X 42.00"
SGR5948CD Refrigerated Deli 59.13" X 35.31" X 48.00"
SGR7742CD Refrigerated Deli 77.13" X 35.31" X 42.00"
SGR7748CD Refrigerated Deli 77.13" X 35.31" X 48.00"
