Series '90
SNR-59SC_SNR-48SC

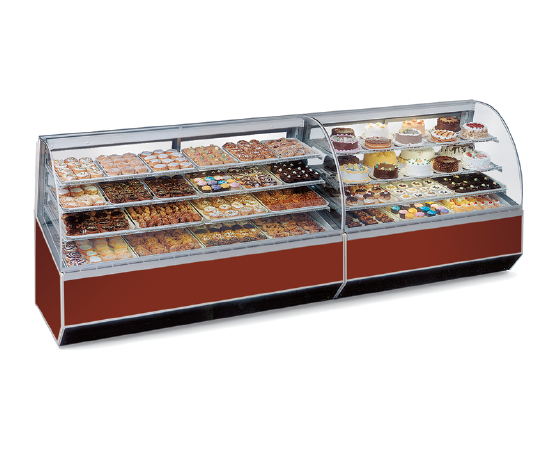

Refrigerated Bakery

The ultimate merchandiser with advanced styling for maximum visual appeal. Cases are available in lengths of 48", 59" and 77". Designed for continuous case lineups.

Standard Features

  • Lift up cylinder assisted tempered curved front glass.
  • All welded base construction.
  • Choice of six standard laminates on base. Other finishes optional.
  • Four point leveling system.
  • Neutral beige acrylic PVC trim. Other trim options available.
  • Case height is only 48" high.
  • Double bend tempered front glass reduces glare from outside lighting.
  • Adjustable white cantilevered wire shelves.
  • Glass ends and rear doors. Rear doors are sloped for product access.
  • Removable sliding rear doors, shelf lights, shelf supports and shelves.
  • Fluorescent top light and mezzanine shelf lights.  Lights are shielded and independently wired.
  • Easily accessible control panel.
  • White display deck.
  • Thermometer.
  • UL Safety & UL Sanitation listed.
  • Average case temperature of 38° F to 40° F is maintained without condensation on the front glass.
  • Oversized coil and low velocity fan system maintains high humidity and product freshness.
  • Condensate evaporator provided for a totally self-contained system. Remote refrigeration available.
  • Pull out condensing unit for quick and easy service.
  • R134A refrigeration system.

Product Options

  • Special Base Finish
  • Base Trim Specify White, Black, or Stainless
  • End Glass Trim Specify White or Black
  • Black or Stainless Steel Interior
  • Glass, Black, or Chrome Shelves in Lieu of White
  • Casters or Legs
  • Cord and Plug (Six Foot)
  • Front Package Shelf With or Without Light Below
  • Reflective End Glass
  • Mirrored Interior Ends With Laminated Exterior
  • Reflective Rear Doors
  • Chocolate Case Modification
  • Rear Wrapping Board
  • Front Glass and Rear Door Locks
  • Top Service Shelf (Stainless Steel or Glass)
  • Condensate Pump

Models

      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
Model Description Dimensions
SNR-48SC Refrigerated Bakery 48.25" X 37.75" X 48.50"
SNR-59SC Refrigerated Bakery 59.25" X 37.75" X 48.50"
SNR-77SC Refrigerated Bakery 77.25" X 37.75" X 48.50"
